Tata Magic Express Yellow 10 Seater
Presenting the All-new Magic Express Petrol 10 Seater - one of India's most economical diesel commercial vehicles in the last mile Public Transport segment. It can be a highly profitable vehicle for your business as it is high on performance and low on maintenance.
22.1 @ 4000 rpm
Wheelbase
55 Nm @ 2500 to 3500 rpm
Max Power
2100
Max Torque
Petrol
Fuel Type
School vans
Application
Overview
Created on the strong base of the Tata Magic Express, a proven product in this category, the Magic Express combines mileage, speed, and comfort, taking the Magic brand a step forward and providing a source of increased earnings for you.
Tata Magic Express features a powerful 22.1 kw (30 HP) engine, a torque of 55 Nm for better pickup and greater mileage at 20.6km/l. This performance is powered by a BS6 compliant, state-of-the-art 694 CC BS6 engine with SCR technology
With a best-in-class top speed of 65 kmph and gradeability of 11.6%, Magic Express easily navigates rough terrains with a high turnaround time, thus making it the vehicle of choice for those seeking the mantra for success.
Features
Power Of 6
Power of Driver and Passenger Comfort
- McPherson Strut coil spring with wishbone type suspension
- Monocoque body structure for car-like comfort

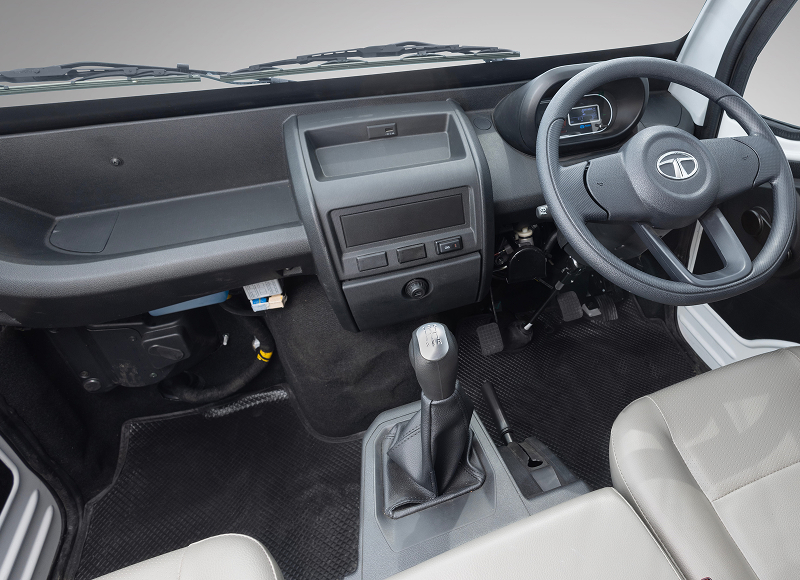

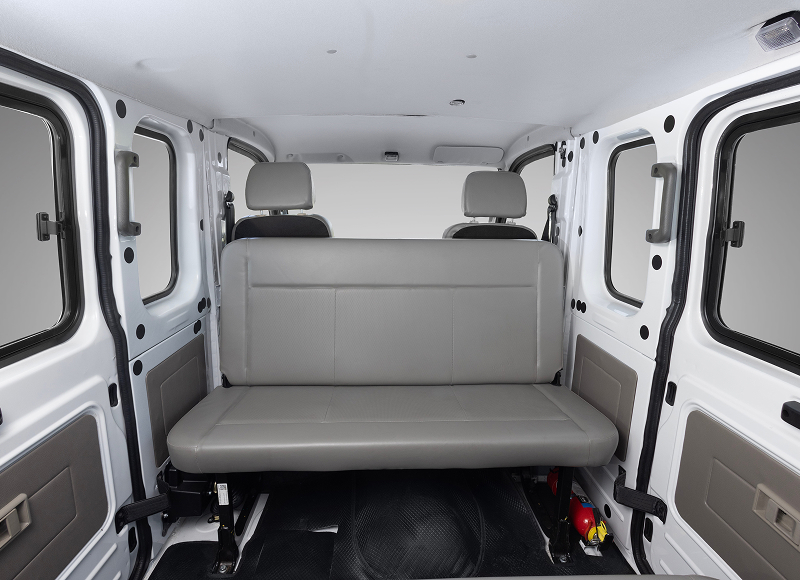

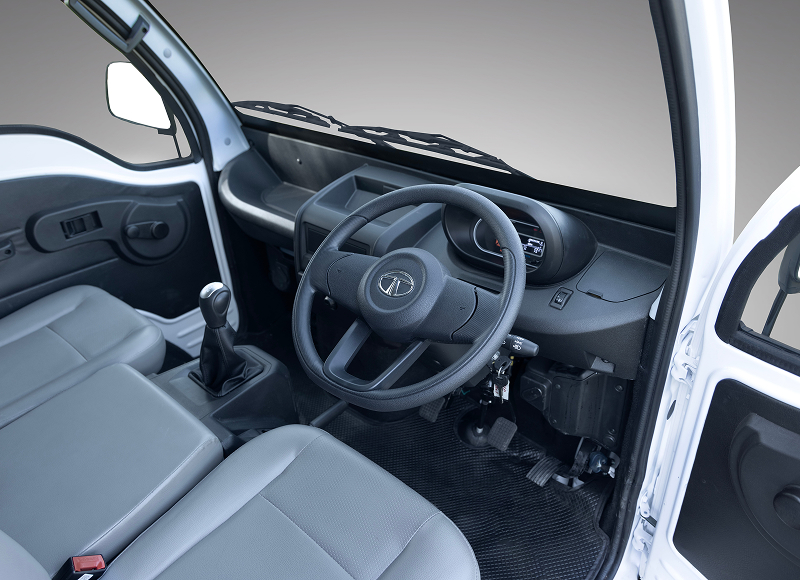

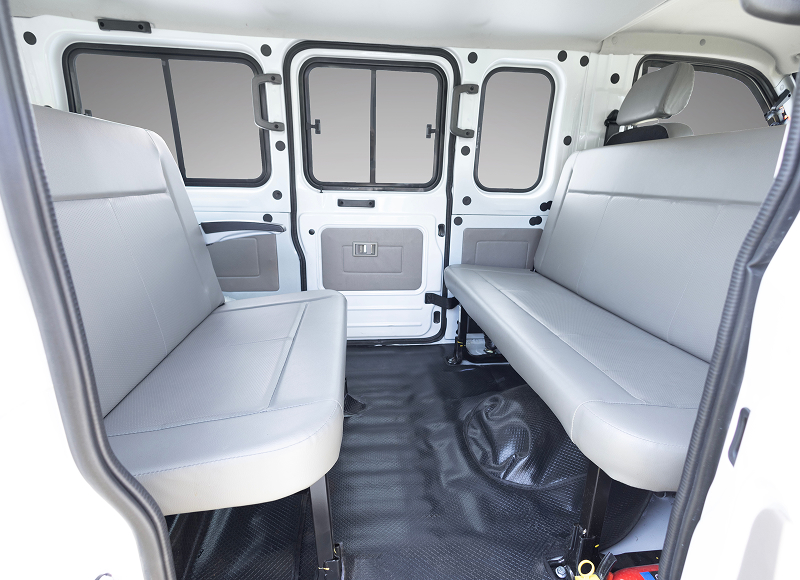

- Spacious and comfortable seating with deluxe seats and a three-way adjustable seat for the driver
Power of Value
- TATA Sampoorn Seva 2.0
- Winger comprehensive AMC
- Winger Promise 2.0

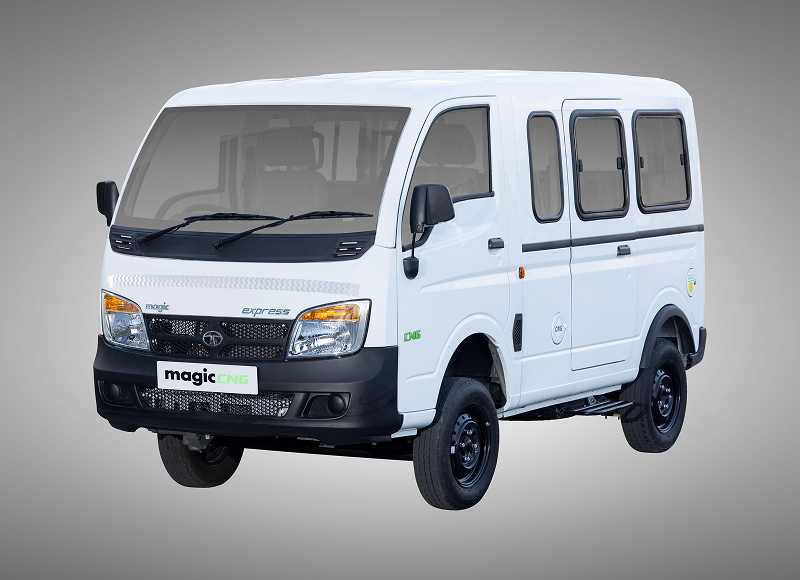

Power of Style and Design

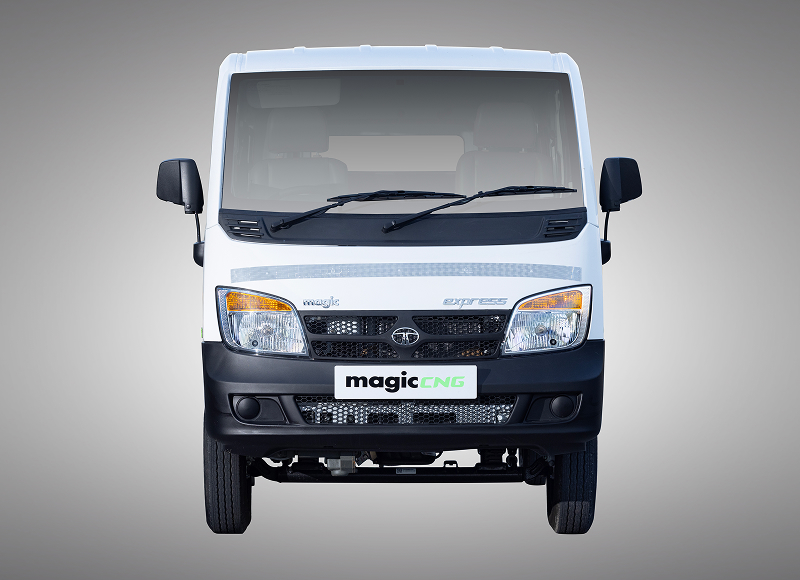

- Premium tough design philosophy with new chrome-plated Trust Bar with Tata logo
- Integrated wraparound DRL with full LED technology-cum-turn signal indicators
- Split grill with matte black finish and enhanced opening for better airflow and radiator performance
Power of Profit
- Best-in-class fuel efficiency in vans for higher profits
- Eco switch gives efficient engine management for higher fuel efficiency
- Torque based Gear Shift Advisor advises the right time to change gears
Power of Performance
- Well-proven Tata DICOR 2.2 litre BS6 Phase 2 engine
- Power output of 74.9 kW at 3750 rpm, offering best-in-class power-to-weight ratio in vans
- Torque of 200 Nm at 1250-3500 rpm, with peak torque available in a wider interval to reduce gearshifts
Power of Connectivity & Convenience
- TATA Fleet edge - Fleet Management System
- Real time vehicle track & trace and Drivers Behaviour Assessment, with Alerts
- Fuel Consumption & Fuel Theft Monitoring and Vehicle Master and Reminders
Specifications
ENGINE
MAKE
M/s TATA Motors Limited
MODEL
275MPFI03
NO. OF CYLINDERS
Two
DISPLACEMENT
694 cc
MAX. ENGINE OUTPUT, KW@RPM
22.1 @ 4000 rpm
MAX. TORQUE, NM@RPM
55 Nm @ 2500 - 3500 rpm
AIR CLEANER TYPE
Dry
TYPE OF FUEL
Petrol
CLUTCH
TYPE
Single plate dry friction diaphragm type.
GEAR BOX
GBS 65-5/6.31
MAKE & MODEL
Synchromesh on all forward gears, sliding mesh for reverse gear
TYPE
5 Forward, 1 Reverse
STEERING
TYPE / DESCRIPTION
Manual
STEERING WHEEL DIAMETER, MM
380 mm
SUSPENSION
TYPE/ DESCRIPTION (FRONT)
Rigid Axle with Semi-Elliptical leaf spring
TYPE/ DESCRIPTION (REAR)
Live Axle with Semi-Elliptical leaf spring
BRAKE
ABS FITTED (YES/ NO/ OPTIONAL)
Yes
FRONT (DISC / DRUM)
Disc Brake
REAR (DISC / DRUM)
Drum Brake
PARKING BRAKE
Cable operated; Mechanical on Rear Wheel
WHEELS AND TYRES
WHEEL RIM SIZE, FRONT
4.0JX12
WHEEL RIM SIZE, REAR
4.0JX12
TYRE SIZE DESIGNATION INCLUDING PLY RATING
FRONT
Radial Tube Type & Tubeless - For M/s MRF : 145/80 R12
REAR
Radial Tube Type & Tubeless - For M/s MRF : 145/80 R12
ELECTRICAL SYSTEM
SYSTEM VOLTAGE, V
12
BATTERY RATING, AH
35/38
FUEL TANK
CAPACITY, LTR
26 Ltr
DIMENSIONS (IN MM)
WHEEL BASE, M
2.1m
OVERALL WIDTH, MM
1500
OVERALL LENGTH, MM
3790
OVERALL HEIGHT, MM
1860
MIN. GROUND CLEARANCE, MM
135
WEIGHTS
TOTAL GVW, KG (FOR RIGID VEHICLES)
1760
SEATING
SEATING CAPACITY
D+9
