STARBUS 4/12 EV
STARBUS 4/12 EV

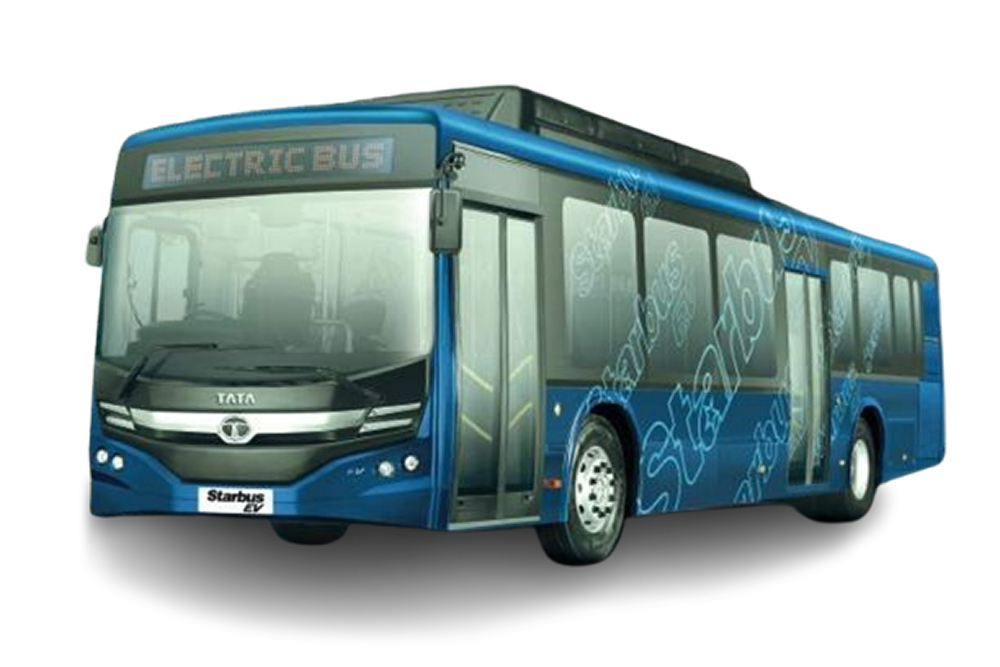

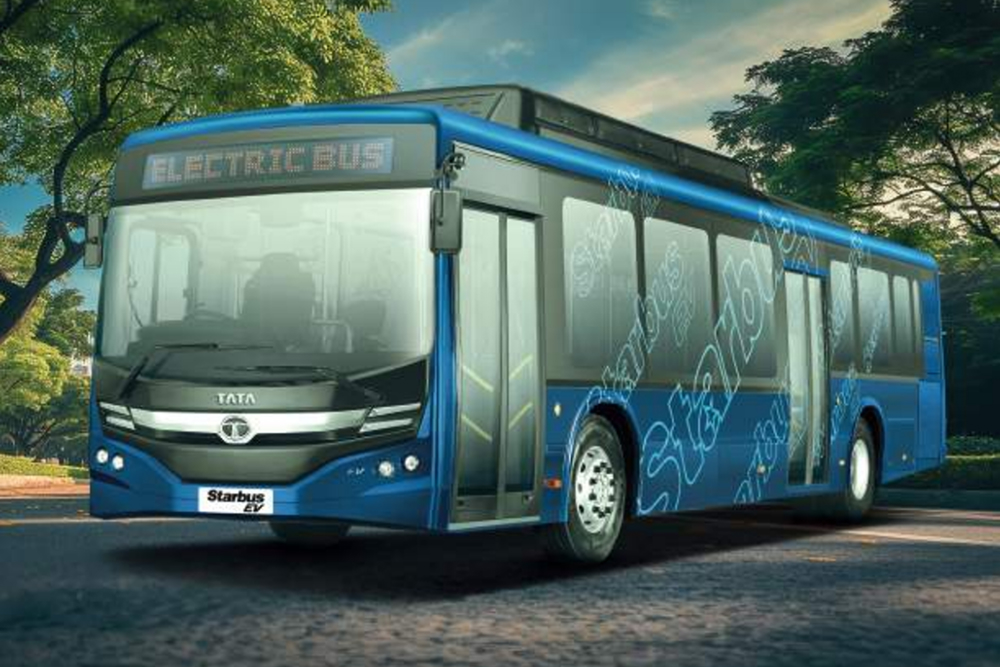

The Tata Starbus 4/12 EV is a zero-emission electric bus with a 19,500 kg GVW, 12m length, and a low 400 mm floor for easy access.
NA
Engine
35/17+2
No. Of Seats
6300 Mm
Wheelbase
EV
Fuel Type
City Buses
Application

Overview
The Tata Starbus 4/12 EV is a zero-emission electric bus with a 19,500 kg GVW, 12m length, and a low 400 mm floor for easy access. Designed for urban mobility, it offers smooth maneuverability (19.7m turning circle) and a spacious, passenger-friendly design
Features

















Power Of 6

Power of Profit
- Improved fuel efficiency
- Higher uptime due to longer & synchronized service intervals
- Low rolling resistance radial tubeless tyres
- Modular design

Power of Convenience
- Multi-functional instrument cluster in-built with Gear Shift Advisor (GSA)
- ITS enabled bus
- Music system (optional) + USB charge in AC buses
- Illuminated dashboard switches for ease of detection
- Reverse parking assistance
- Best-in-class cabin storage

Power of Design & Style
- Front face with Tata trust bar
- Panoramic curved front windshield
- Elegant & clean interior finish
- ABS window pillar for each window
- New slenderised internal LED lamps with moon lighting
Benefits
-
Sturdy built quality for passenger & Drivery Safety
-
More reliable, Better performance, More profits to customers
-
Increased number of seats and seat width for seating comfort
-
More no of Trips with highest Fluid Economy
-
Refreshed look, End customer preference
-
Increased comfort and convenience to passengers
-
Better Resale value
-
Low Noise, Vibration & Harshness
-
Low Maintenance with value added service options
-
24x7 customer care and road side assistance
-
Spare Part Availability across country
- GVW19500 kg
- Overall Length12050 + 50 mm
- Wheelbase6300 mm
- Overall Height3400 + 50 mm
- Floor Height400 mm
- Overall Width2600 mm (without mirrors)
- Passenger Door2 or 3 as per requirement
- Turning circle Diameter19.7 m
- LV System Voltage24 V
- Tyres295/80 R22 7 nos.
- BrakesDisc
- SuspensionAir Suspension
- SteeringIntegral Hydraulic Power Assisted
- Traction Motor Peak power245 kW
- Traction Motor Continuous Power145 kW
- Traction Motor Peak Torque2950 Nm
- Traction Motor Continuous Torque1145 Nm
- HV Battery657 V DC
- Battery Energy400 kWh
- TransmissionDirect Drive
- ChargerOff board charging, CCS 2 Charging Standard
- Max Speed70 kmph
- Gradeability17%
- AccelerationAs per CMVR
- Seating capacity35+Wheel Chair, 17+ 2 Wheel Charirs
- Seating Layout2x2
- Seat TypeHigh Head Rest/Hi Back Reclining/Push Back Seats
- Regulatory Requirements / CompliancesAIS - 052, FAME, CMVR
VIEW MODEL
Manufacturing Excellence

Precision Body Panelling
Laser‑cut panels formed on high‑accuracy presses ensure uniform fit and optimal structural integrity.

Jigs & Coupling Fixtures
Custom‑designed jigs guarantee exact alignment of chassis and body sub‑assemblies; hydraulic coupling fixtures deliver repeatable, tight tolerances.

Advanced Painting Process
Five‑stage pre‑treatment (cleaning, phosphating, sealing, primer, top‑coat) in controlled spray booths for corrosion resistance, UV stability and a showroom‑quality finish.

Robotic‑Arm Automation
Robotic welding and sealant application for consistent weld strength and leak‑proof joins—boosting throughput and minimizing human error.

Shower‑Test Validation
Full‑vehicle water ingress testing under simulated monsoon‑grade spray ensures airtight seals and passenger comfort in all weather conditions.
Tailored Customization

Exterior Livery & Color Schemes
Full PANTONE-matched finishes, custom graphics and anti-graffiti coatings.

Seating Configurations & Materials
Standard Seating: Fixed and reclining options Premium Seating: Eco-leather, fabric or full-leather covers Sleeper Berths: For overnight or long-haul comfort

Driver Comfort Enhancements
Ergonomic driver’s console, adjustable suspension seat, HVAC vents and command-center lighting.

Accessibility Options
Wheelchair ramps, priority seating and low-floor entries with grab-handles.

Infotainment & Passenger Comfort
Integrated HVAC, USB charging ports, overhead LED mood-lighting and roof-mounted LED displays.
