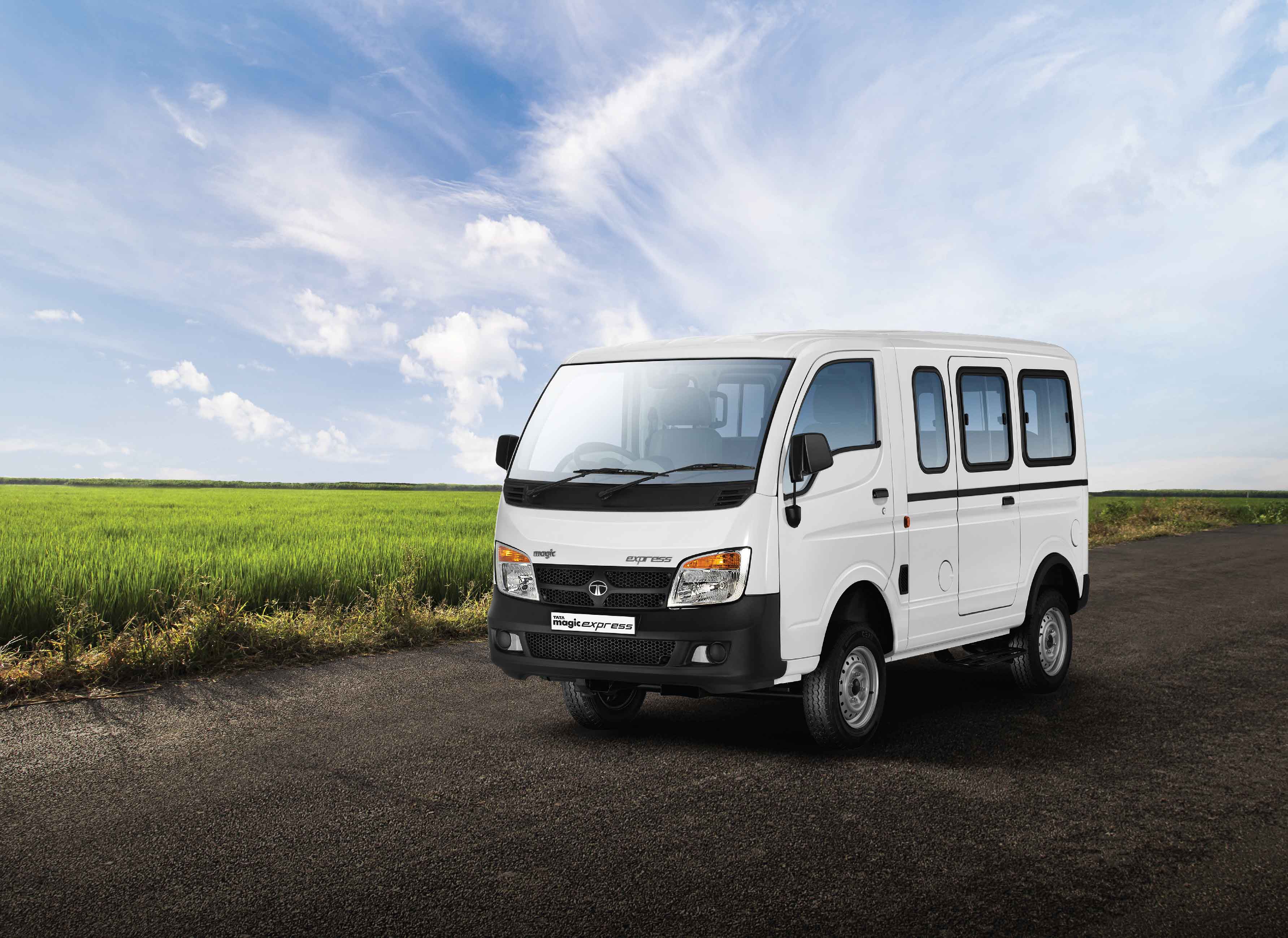

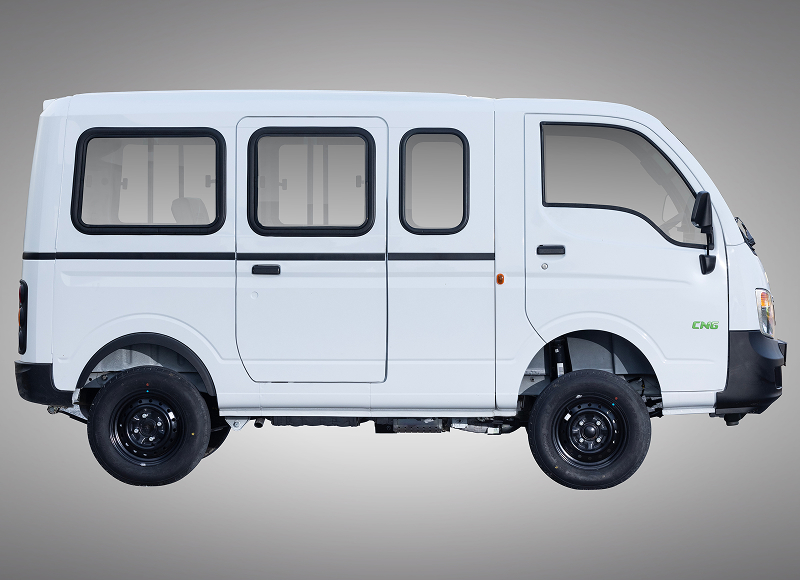

Tata Magic Express 10 Seater
Presenting the All-new Magic Express Petrol 10 Seater - one of India's most economical diesel commercial vehicles in the last mile Public Transport segment. It can be a highly profitable vehicle for your business as it is high on performance and low on maintenance.
2100
Wheelbase
30hp/ 22kw
Max Power
55@2500-3500
Max Torque
Petrol
Fuel Type
Tourist vans, School vans
Application
Overview
Created on the strong base of the Tata Magic Express, a proven product in this category, the Magic Express combines mileage, speed, and comfort, taking the Magic brand a step forward and providing a source of increased earnings for you.
Tata Magic Express features a powerful 22.1 kw (30 HP) engine, a torque of 55 Nm for better pickup and greater mileage at 20.6km/l. This performance is powered by a BS6 compliant, state-of-the-art 694 CC BS6 engine with SCR technology.
With a best-in-class top speed of 65 kmph and gradeability of 11.6%, Magic Express easily navigates rough terrains with a high turnaround time, thus making it the vehicle of choice for those seeking the mantra for success.
Features
Power Of 6
Power of Driver and Passenger Comfort
- McPherson Strut coil spring with wishbone type suspension
- Monocoque body structure for car-like comfort

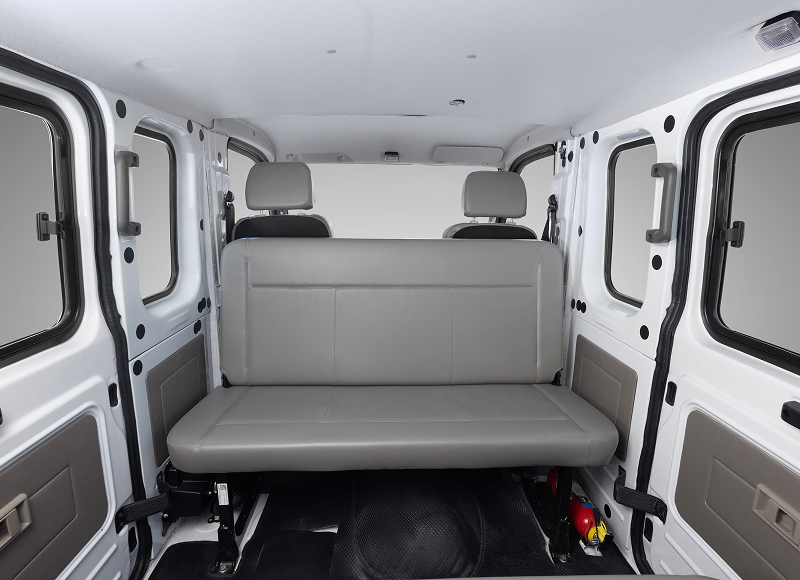

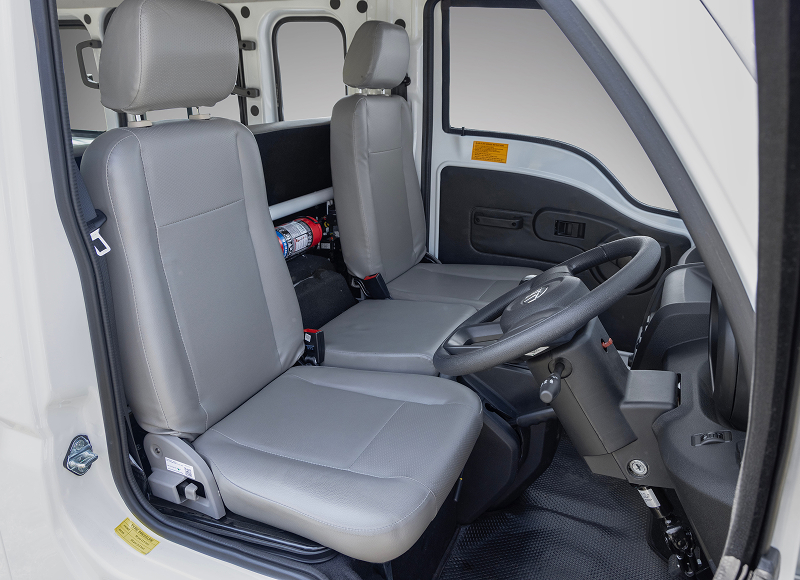

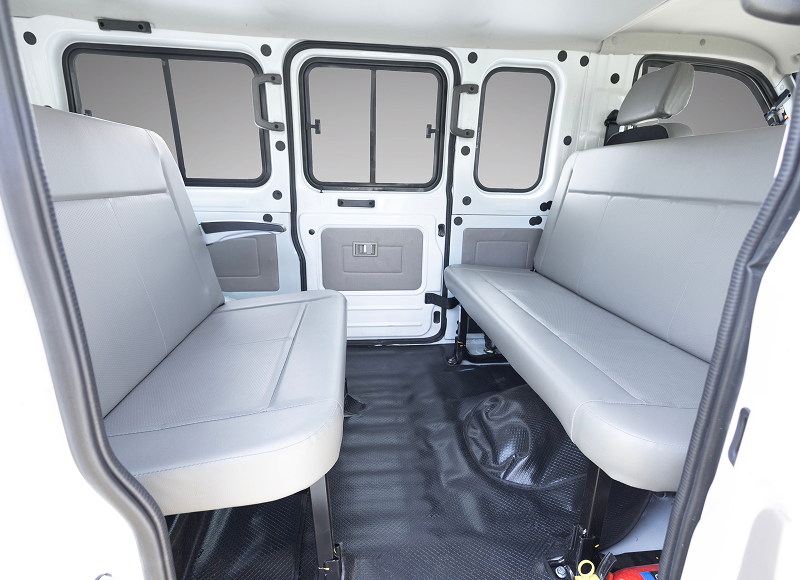

- Spacious and comfortable seating with deluxe seats and a three-way adjustable seat for the driver
Power of Value
- TATA Sampoorn Seva 2.0
- Winger comprehensive AMC
- Winger Promise 2.0
Power of Style and Design
- Premium tough design philosophy with new chrome-plated Trust Bar with Tata logo
- Integrated wraparound DRL with full LED technology-cum-turn signal indicators
- Split grill with matte black finish and enhanced opening for better airflow and radiator performance
Power of Profit
- Best-in-class fuel efficiency in vans for higher profits
- Eco switch gives efficient engine management for higher fuel efficiency
- Torque based Gear Shift Advisor advises the right time to change gears
Power of Performance
- Well-proven Tata DICOR 2.2 litre BS6 Phase 2 engine
- Power output of 74.9 kW at 3750 rpm, offering best-in-class power-to-weight ratio in vans
- Torque of 200 Nm at 1250-3500 rpm, with peak torque available in a wider interval to reduce gearshifts
Power of Connectivity & Convenience
- TATA Fleet edge - Fleet Management System
- Real time vehicle track & trace and Drivers Behaviour Assessment, with Alerts
- Fuel Consumption & Fuel Theft Monitoring and Vehicle Master and Reminders
Specifications
ENGINE
MAKE
M/s TATA Motors Limited
MODEL
275MPFI03
NO. OF CYLINDERS
Two
DISPLACEMENT
694 cc
MAX. ENGINE OUTPUT, KW@RPM
22.1 @ 4000 rpm
MAX. TORQUE, NM@RPM
55 Nm @ 2500 to 3500 rpm
AIR CLEANER TYPE
Dry
TYPE OF FUEL
Petrol
CLUTCH
TYPE
Single plate dry friction diaphragm type.
GEAR BOX
GBS 65-5/6.31
MAKE & MODEL
Synchromesh on all forward gears, sliding mesh for reverse gear
TYPE
5 Forward, 1 Reverse
STEERING
TYPE / DESCRIPTION
Manual
STEERING WHEEL DIAMETER, MM
380 mm
SUSPENSION
TYPE/ DESCRIPTION (FRONT)
Rigid Axle with Semi-Elliptical leaf spring
TYPE/ DESCRIPTION (REAR)
Live Axle with Semi-Elliptical leaf spring
BRAKE
ABS FITTED (YES/ NO/OPTIONAL)
Yes
FRONT (DISC / DRUM)
Disc Brake
REAR (DISC / DRUM)
Drum Brake
PARKING BRAKE
Cable operated; Mechanical on Rear Wheel
WHEELS AND TYRES
WHEEL RIM SIZE, FRONT
4.5JX13
WHEEL RIM SIZE, REAR
4.5JX13
TYRE SIZE DESIGNATION INCLUDING PLY RATING
FRONT
Radial Tyre with Tubeless & Tube Type: 155 R13
REAR
Radial Tyre with Tubeless & Tube Type: 155 R13
ELECTRICAL SYSTEM
SYSTEM VOLTAGE, V
12
BATTERY RATING, AH
35/38
FUEL TANK
CAPACITY, LTR
26 Ltr
DIMENSIONS (IN MM)
WHEEL BASE, MM
2.1m
OVERALL WIDTH, MM
1500
OVERALL LENGTH, MM
3790
OVERALL HEIGHT, MM
1890
MIN. GROUND CLEARANCE, MM
150
WEIGHTS
TOTAL GVW, KG (FOR RIGID VEHICLES)
1830
SEATING
SEATING CAPACITY
D+9
