VIEW MODEL
-
-
White
Winger
TATA WINGER AMB TYPE D BS6 7+P AC SI
The Tata Winger Ambulance complies with AIS 125 part 1 norms and is offered in four configurations: Patient Transport, Basic Life Support, Advanced Life Support, and Shell.
3200mm
Wheelbase
73.5 kW @3750 r/min
Max Power
200 Nm @1000-3500 r/min
Max Torque
Diesel
Fuel Type
Ambulance vans
Application
Overview
With the new Winger BS6, six significant features take centre stage. These include a focus on Profit Optimization, thanks to its cost-effective LNT+ DPF technology and an Eco-Fuel Saving Mode. Performance is also a key highlight, driven by a 2.2L engine that delivers an impressive 73.5kW of power and 200 Nm of torque at 1000-3500 r/min. Moreover, the new Winger BS6 places great emphasis on enhancing both driver and passenger comfort, ensuring a pleasant and comfortable journey. Connectivity and convenience are also at the forefront with the inclusion of telematics and fleet management solutions.
Manufacturing Excellence

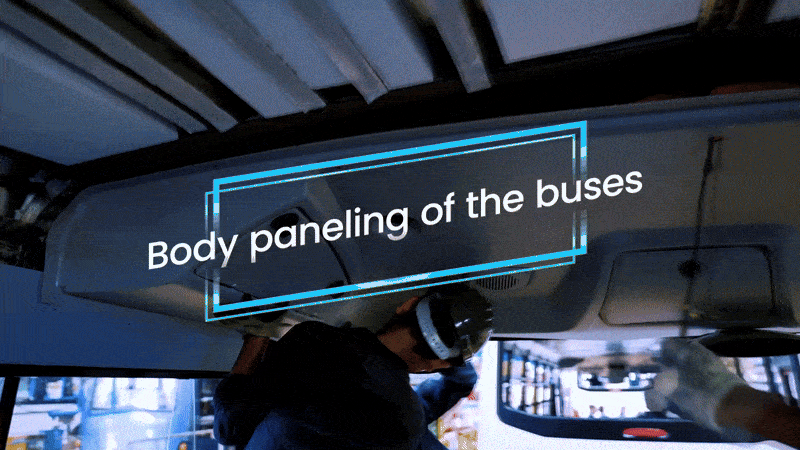

Precision Body Panelling
Laser‑cut panels formed on high‑accuracy presses ensure uniform fit and optimal structural integrity.
Jigs & Coupling Fixtures
Custom‑designed jigs guarantee exact alignment of chassis and body sub‑assemblies; hydraulic coupling fixtures deliver repeatable, tight tolerances.
Advanced Painting Process
Five‑stage pre‑treatment (cleaning, phosphating, sealing, primer, top‑coat) in controlled spray booths for corrosion resistance, UV stability and a showroom‑quality finish.
Robotic‑Arm Automation
Robotic welding and sealant application for consistent weld strength and leak‑proof joins—boosting throughput and minimizing human error.
Shower‑Test Validation
Full‑vehicle water ingress testing under simulated monsoon‑grade spray ensures airtight seals and passenger comfort in all weather conditions.
Tailored Customization
Exterior Livery & Color Schemes
Full PANTONE-matched finishes, custom graphics and anti-graffiti coatings.

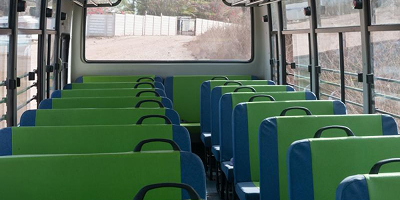

Seating Configurations & Materials
Standard Seating: Fixed and reclining options Premium Seating: Eco-leather, fabric or full-leather covers Sleeper Berths: For overnight or long-haul comfort
Driver Comfort Enhancements
Ergonomic driver’s console, adjustable suspension seat, HVAC vents and command-center lighting.
Accessibility Options

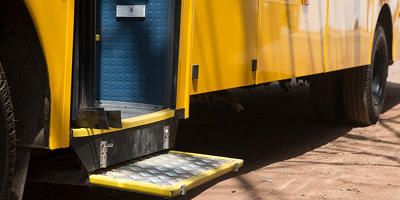

Wheelchair ramps, priority seating and low-floor entries with grab-handles.
Infotainment & Passenger Comfort
Integrated HVAC, USB charging ports, overhead LED mood-lighting and roof-mounted LED displays.
Proven Success Stories
Blog
16 May, 2025

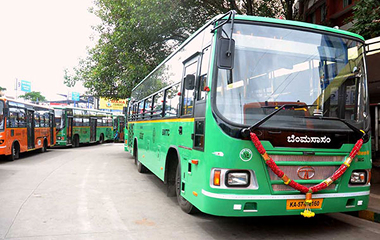

Tata Motors Begins Delivery of 148 Advanced Starbus EVs to BMTC, Boosting Bengaluru’s E-Mobility Drive.
Blog
16 May, 2025

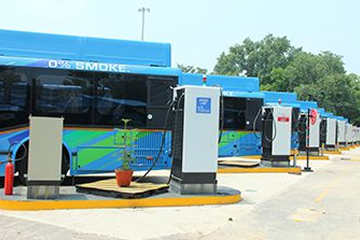

Tata Motors’ electric buses clock 25 crore kilometres; equivalent to traversing the circumference of the earth 6200 times!
Blog
16 May, 2025
Why Fleet Operators Are Choosing Tata Electric Buses Over Diesel
Comprehensive After‑Sales Support
Our end‑to‑end services keep your e‑bus fleet on the road and optimised for performance.
Brings to you the convenience of the entire EV ecosystem under one umbrella
Get live updates on vehicle movement remotely on Fleet Edge
Remove or minimise the risks associated with vehicle maintenance.
Get live updates on vehicle movement remotely on Fleet Edge
Maintenance and repair services at specified National Highways through Service outlets.
Ready to transform your fleet?
Features
Power Of 6
Power of Driver and Passenger Comfort
- McPherson Strut coil spring with wishbone type suspension
- Monocoque body structure for car-like comfort
- Spacious and comfortable seating with deluxe seats and a three-way adjustable seat for the driver
Power of Value
- TATA Sampoorna Seva 2.0
- Winger comprehensive AMC
- Winger Promise 2.0
Power of Style and Design
- Premium tough design philosophy with new chrome-plated Trust Bar with Tata logo
- Integrated wraparound DRL with full LED technology-cum-turn signal indicators
- Split grill with matte black finish and enhanced opening for better airflow and radiator performance
Power of Profit
- Best-in-class fuel efficiency in vans for higher profits
- Eco switch gives efficient engine management for higher fuel efficiency
- Torque based Gear Shift Advisor advises the right time to change gears
Power of Performance
- Well-proven Tata DICOR 2.2 litre BS6 Phase 2 engine
- Power output of 74.9 kW at 3750 rpm, offering best-in-class power-to-weight ratio in vans
- Torque of 200 Nm at 1250-3500 rpm, with peak torque available in a wider interval to reduce gearshifts
Power of Connectivity & Convenience
- TATA Fleet edge - Fleet Management System
- Real time vehicle track & trace and Drivers Behaviour Assessment, with Alerts
- Fuel Consumption & Fuel Theft Monitoring and Vehicle Master and Reminders
Specifications
ENGINE
MAKE
TATA Motors Limited
MODEL
VARICOR 11
TYPE
Compression Ignition Diesel Engine
NO. OF CYLINDERS
4 Cylinders
DISPLACEMENT
2179
MAX. ENGINE OUTPUT, KW@RPM
74.8kW@3750+/-rpm
MAX. TORQUE, NM@RPM
200Nm@1000to3500rpm
TYPE OF FUEL
Diesel
CLUTCH
CLUTCH
Dry,Single Plate
GEAR BOX TYPE
TA-70
NO. OF GEARS
5
STEERING
TYPE/DESCRIPTION
Rack & PinionType / PowerSteering
SUSPENSION
TYPE / DESCRIPTION(FRONT)
McPherson Strut with coil spring
TYPE / DESCRIPTION(REAR)
Parabolic leaf spring
SPRING
Front-Coil Spring; Rear- Leaf Spring
ANTI-ROLLBAR(FRONT)
Yes(Optional)
ANTI-ROLLBAR(REAR)
Yes(Optional)
SHOCKABSORBERS(FRONT)
McPherson Strut; 2 Nos
SHOCKABSORBERS(REAR)
Double Acting Hydraulic Telescopic Shock Absorbers; 2 Nos
BRAKE
SERVICEBRAKE(BRIEFDESCRIPTION)
Vacuum Assisted Hydraulic brakes Dual Circuit with Tandem Master Cylinder acting on all four wheels with Automatic wear adjuster at rear.
ABS FITTED (YES/ NO/ OPTIONAL)
Yes
FRONT (DISC / DRUM)
Disc Brake
REAR (DISC / DRUM)
Drum Brake
TYRE SIZE
FRONT
195 R15
REAR
LT 195 R15 8PR
ELECTRICAL SYSTEM
SYSTEM VOLTAGE, V
12 Volts
FUEL TANK
CAPACITY, LTR
60
DIMENSIONS
WHEEL BASE, MM
3488
OVERALL WIDTH, MM
1905
OVERALL LENGTH, MM
5478
OVERALL HEIGHT, MM
2490
MIN. GROUND CLEARANCE, MM
180mm
MAX GVW
3385
SEATING
SEATING CAPACITY
10+P
