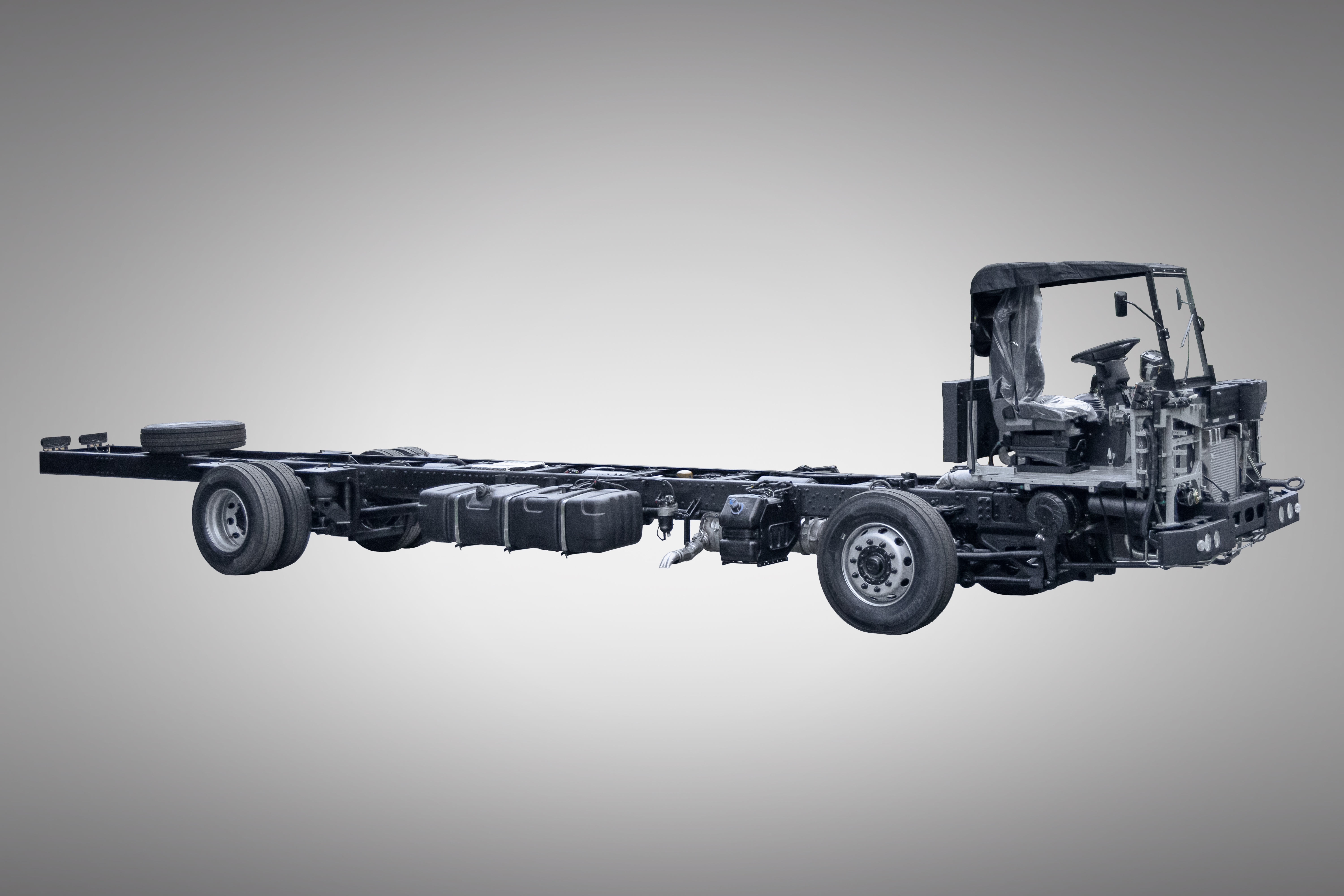

Chassis

TATA LPO 1822 FARA

BS VI

Cummins ISBe 5.6L

Engine

36 / 50

No. Of Seats

6925 mm

Wheelbase

Diesel

Fuel Type

Chassis

Application

1822
876-25 Tata Motors - LPO 1822 Chassis - Brochure_compressed_0.pdf
TATA LPO 1822 FARA
Enquire Now View Models

Overview

Engineered for greater reliability, powerful performance and superior comfort, the new Tata LPO 1822 is the best choice for intercity travel. It has been designed to reduce driver’s fatigue, and comes equipped with front and rear air suspension, for passengers to experience comfort throughout the journey. Be it mid-distance or long-distance travel, the Tata LPO 1822 is perfectly suited to make the most of each route.

Know More

Compare Vehicle
EMI-Calculator
FAQs
Book Now

Features

Complete Comfort

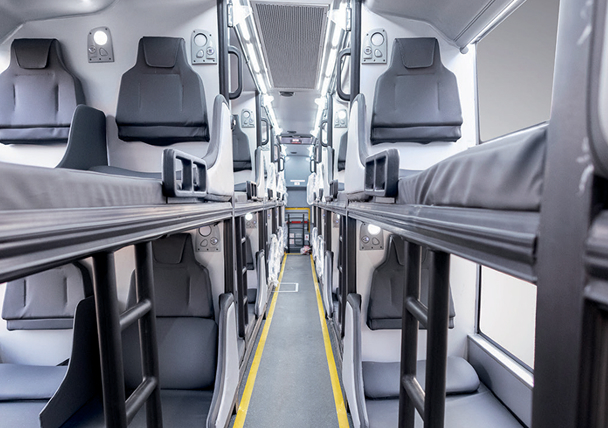

Modern Design

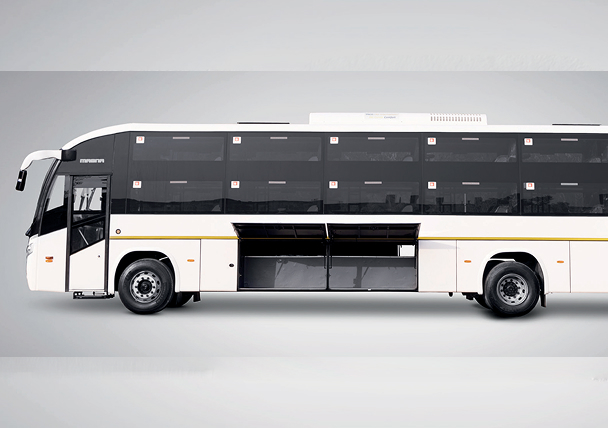

Absolute Safety

Power Of 6

Power of Profit

  • Improved fuel efficiency
  • Higher uptime due to longer & synchronized service intervals
  • Low rolling resistance radial tubeless tyres
  • Modular design

Power of Convenience

  • Multi-functional instrument cluster in-built with Gear Shift Advisor (GSA)
  • ITS enabled bus
  • Music system (optional) + USB charge in AC buses
  • Illuminated dashboard switches for ease of detection
  • Reverse parking assistance
  • Best-in-class cabin storage

Power of Design & Style

  • Front face with Tata trust bar
  • Panoramic curved front windshield
  • Elegant & clean interior finish
  • ABS window pillar for each window
  • New slenderised internal LED lamps with moon lighting

Benefits

Specifications
  • Engine Model
    Cummins ISBe 5.6L
  • No. of Cylinders
    6
  • Engine Output
    164KW (220 hp) at 2300 RPM
  • Torque
    925 Nm at 1000–1600 RPM
  • Clutch Type
    Multi-stage coil spring single plate dry friction
  • Clutch Dia
    380 mm
  • Transmission
    Tata G950 6F + 1R

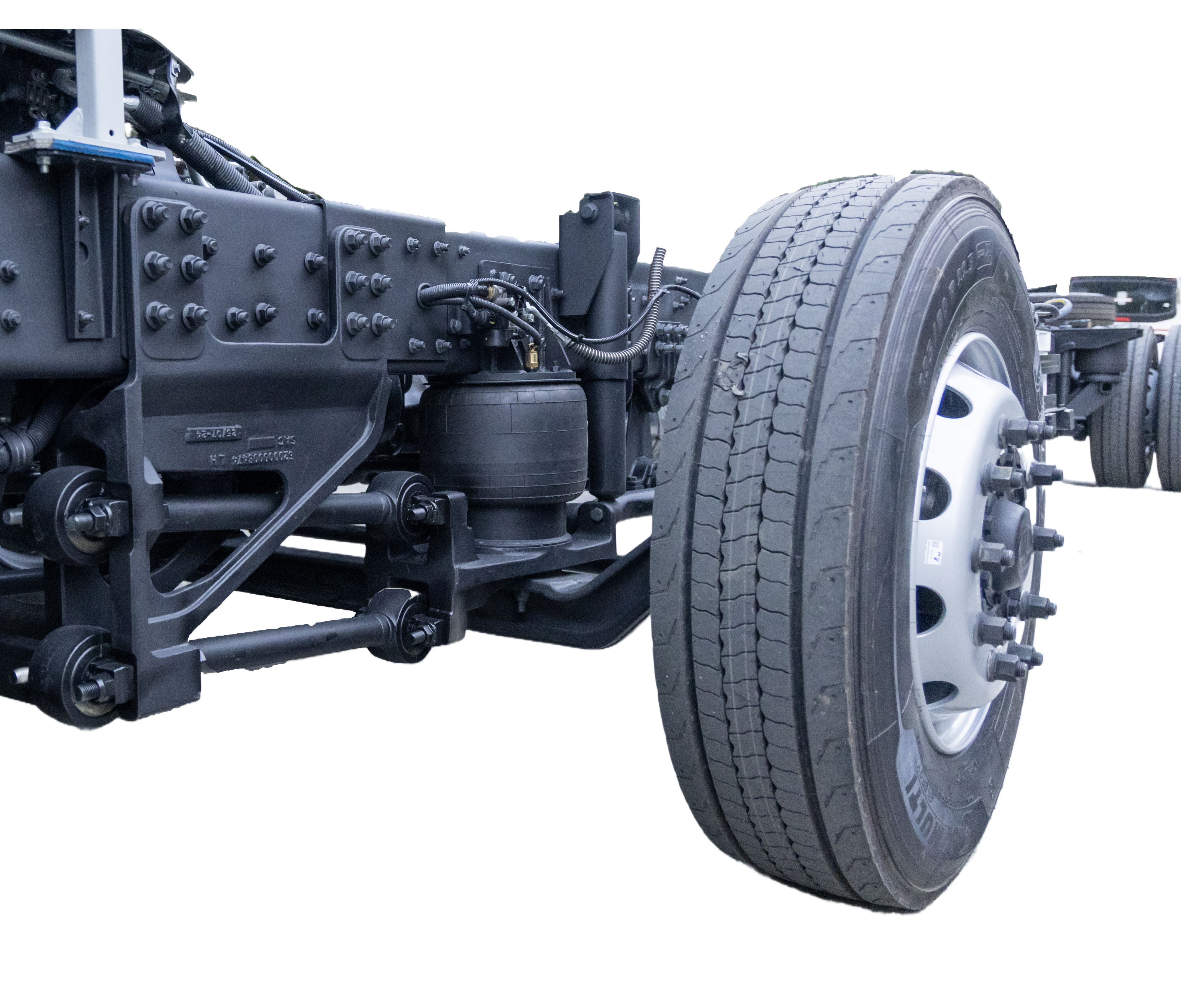

  • Suspension
    Front & rear pneumatic suspension
  • Battery
    2x12 Volts, 180 AH
  • Alternator Capacity
    150 Amps x 2
  • Wheel Rims
    8.25 x 22.5
  • Tyres
    295/80 R22.5 - 16 PR
  • Brakes
    Front disc & rear drum dual-circuit full-air brake
  • Engine Exhaust Brake
    Yes (ETV)
  • Steering Type
    Adjustable Tilt & Telescopic type, Power Steering
  • Shock Absorber
    Hydraulic double acting telescopic, with front & rear axles with ARB
  • Ground Clearance (mm)
    230 mm
  • Minimum Turning Circle Dia
    21800 mm
  • Overall Length
    11995 mm
  • Overall Width
    2585 mm
  • Gross Weight
    18700 kg
  • Frame Overhang (Front)
    2265 mm
  • Frame Overhang (Rear)
    4005 mm
  • Wheel Base
    6925 mm
  • Fuel Tank Capacity
    400 Ltrs
  • Fuel Tank
    HDPE
  • Secondary Brake
    Electro-magnetic retarder
